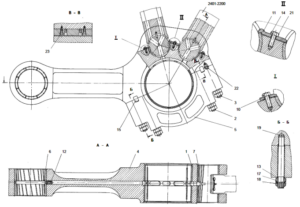

COMPRESSOR CONNECTING ROD
- Pos.DesignationNameQuantity
- 2401-2210Compressor connecting rod
- 12401-2212Connecting rod insert2
- 22401-2213Pin L=3454
- 32401-2214Pin L=2824
- 42401-221001Compressor connecting rod1
- 52401-221002Connecting rod cover1
- 62401-221003Connecting rod sleeve1
- 72401-221004Connecting rod sleeve1
- 102401-221007Clamp2
- 112401-221003Brace1
- 122401-221009Nipples1
- 132401—221010Washer8
- 142401-221011Wire 1.6-0-С GOST 3282 L=2503
- 152401—221012Key2
- 174401-230016-1Haika8
- 184401-230017-1Lock nut8
- 194681-0049-02Elastic lock nut8
- 21NK-017-1Bolt 3M10-6g x 30.66 GOST 779B6
- 22NK-086Pin 12k6x321
- 23NK-0213-1Screw M6-6g x 35.66 GOST 1173B4
- The connecting rod of the compressor is a part of the crank mechanism. The connecting rod converts the rotational movement of the crankshaft into reciprocating movements of the piston.
