Horizontal overhung pumps

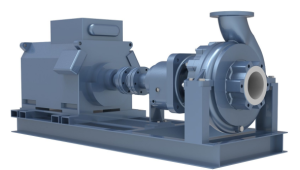

HORIZONTAL CANOPY PUMPS LC and NK
(Including for replacement of NK, X pumps)

Designed for harsh operating conditions in oil and gas and chemical industries; for pumping aggressive, viscous and abrasive media.

Design

• Pump for severe operating conditions.

High-quality workmanship, reliability, simplicity, quick maintenance.

• Unified design.

The use of block-modular design technology allows the use of different components on one pump base (impeller types, seal types, bearing types).

• Impeller.

Closed impeller: high efficiency; high strength; low volume losses (flow from the outlet to the inlet of the impeller); high cavitation characteristics; – open impeller: resistant to abrasive; resistant to plaque formation; non-clogging; intended for: viscous media, crystallizing media, gas-containing media.

• Adjustable armored disc.

The armored disc protects the casing from wear, and when arranged with an open impeller, it allows you to adjust the gap between the impeller and the armored disc.

• Reliable sealing.

Sealing at the customer’s choice. Single end, double end, dynamic, stuffing box.

• Material design.

The possibility of manufacturing the flow part of the pump in different material designs (Steel 25L, 20X13, 12X18N10T, titanium).
